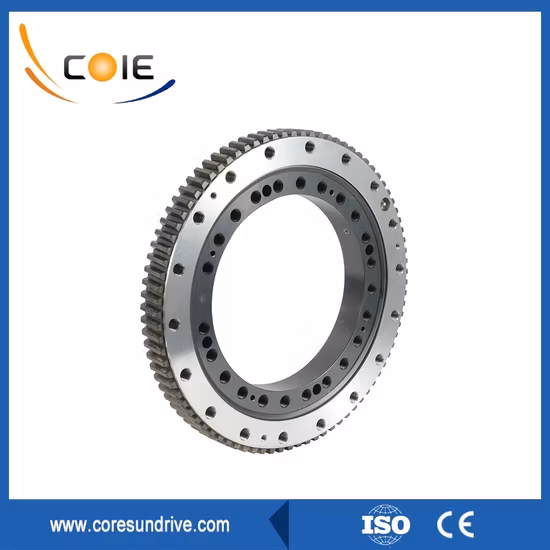

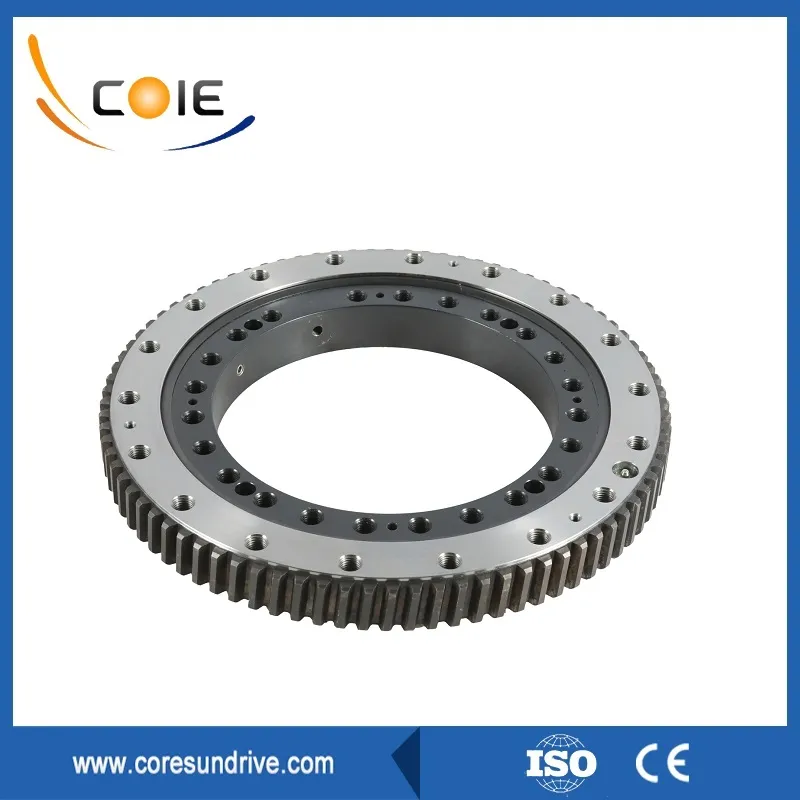

Slewing Bearing for Engineering Machine, Solar Power and Wind Power

Basic Info.

Model NO.	SF17-2
Static Axial Load	970kn.M
Outer Dia.	480mm
Inner Dia.	365mm
Gear Ratio	102:1
Tilting Moment Torque	135.6kn.M
Holding Torque	72.3kn.M
Transport Package	Standard Exporting Package
Specification	SF17-2
Trademark	Coresun Drive
Origin	Changzhou
HS Code	8482109000
Production Capacity	6000PCS/Month

Product Description

Large Size Bearing Turntable Bearing Internal Gear SlewingRing Bearings for Deck Crane Machine, Wind Power and Machinery Construction

Model	SF17	Place of Origin	Changzhou,China
Brand	Coresun Drive	Type	Single Ball Ring
Material	42CrMo	Output Torque	20.4KN.m
Tilting Moment Torque	135.8KN.m	Holding Torque	72.3K N.m
Static Axial Rating	970KN	Static Radial Rating	390KN
Dynamic Axial Rating	114KN	Dynamic Radial Rating	100KN
Gear Ratio	102:1	Ourter Dia.	420mm

Coresun as a public company for slewing bearing designing, machining, assembling, fabricating and repairing, we provide a turnkey project for all your requirements. We do None gear, Internal & External gears, ring gears, rings, slewing ring bearings and other forging parts for different fields. To save your significant time and effort, we create the drawing and graph for the normal standard slewing bearing.Slewing bearing is composed of inner ring, outer ring and rolling body, it is a kind of large bearing which can bear the comprehensive load, and can bear the large axial, radial load and overturning moment at the same time.Slewing bearing is also called: Slewing ring bearing/ Turntable bearing/ Slewing ring etc. Slewing Ring Bearings can accommodate axial, radial and moment loads acting single or in combination and in any direction. They are not mounted in a housing or on a shaft, but directly to a seating surface. The inner and outer ring are supplied with mounting holes. Both rings may have integral gears. They are also referred to as slewing rings and tabletop bearings. Slewing ring bearing can perform oscillating (slewing) as well as rotating movements. They may be used without gears or with internal or external gears.

Structure types of Slewing Bearings

-- Single-row 4-point contact ball series

-- Single-row crossed roller series

-- Double-row ball series

-- Three-row roller series

-- Roller and ball combination series

-- Quenching slewing ring bearing

-- For Non-gear,External Gear,Internal Gear

Application of Slewing Bearings

Mining machine, construction equipment, port hoisting machine, port oil transfer equipment,

onshore and offshore crane, excavator,concrete machine, revolving grabbers and winches,

plastic and rubber machine, weave machine, logging industry machines, wind-power generation,

electronic power plant, water treatment machinery, drilling equipment and steering applications.

About Us: We have established a solid foundation in technology,equipment,personal and management we strengthen the complete quality control and service system.During ten years quick development,Our excavators and parts have been exporting to South Africa Africa Ghana Zambia Nigeria Uganda Kenya Bangladesh Nepal India Pakistan Thailand Philippines Malaysia Indonesia Singapore South Korea Israel Ireland South America Brazil Columbia Mexico Russia Ukraine Australia and so on.We provide all parts for Coresun excavator,so its convenient for you if you want to buy kinds of parts together.And also please do not worry about the price and quality!We totally have advantage in price and quality compared with foreign trade company.

Production Photo and Application

Coresun Drive makes the tilting moment torque testing to ensure the quality and safety factor on slewing bearing bearing.Quality is the foundation of enterprise development.
